Monitor DTC Status
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

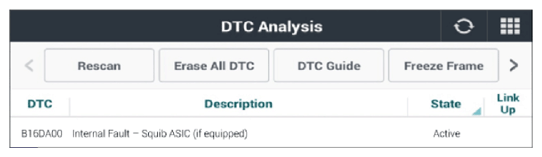

Fig.1 |
Active Fault
- If B162000 is set together replace SRSCM and go to "VERIFICATION OF REPAIR " procedure. If B162000 is not present, re-check for DTCs after Ignition ON/OFF.
History/Pending Fault
- go to "VERIFICATION OF REPAIR " procedure.
