ACU Variant Coding

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. ACU variant coding (Off-line type on KDS-this can be used when not connecting to internet) in the "Vehicle S/W Management" with KDS.
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS and verify that any DTC is stored.
 Fig.1 to 7
G15721532Courtesy of KIA MOTORS AMERICA, INC.

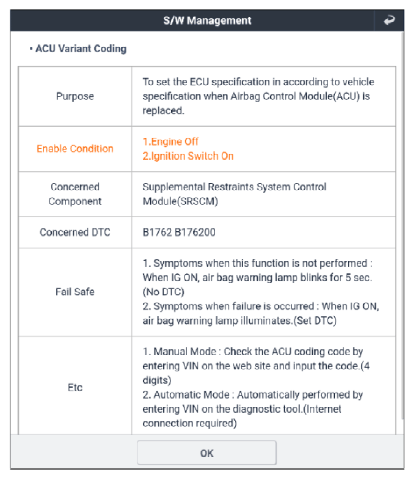

G15721533Courtesy of KIA MOTORS AMERICA, INC.
G15721534Courtesy of KIA MOTORS AMERICA, INC.

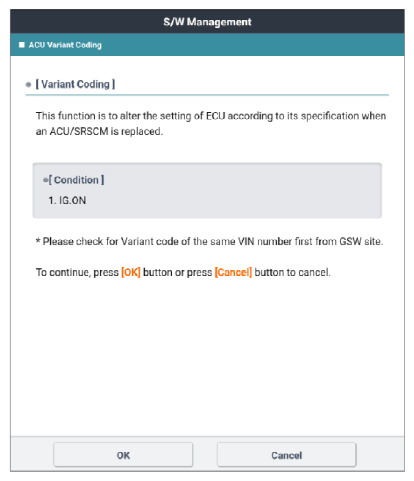

G15721535Courtesy of KIA MOTORS AMERICA, INC.
G15721536Courtesy of KIA MOTORS AMERICA, INC.

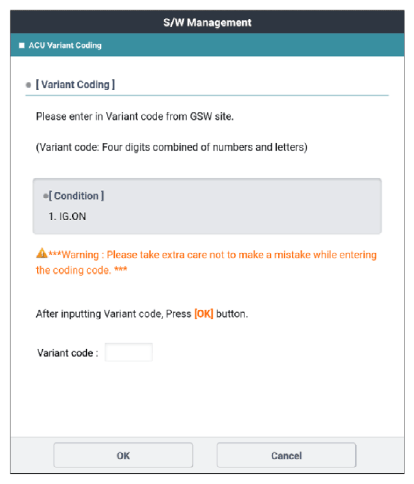

G15721537Courtesy of KIA MOTORS AMERICA, INC.

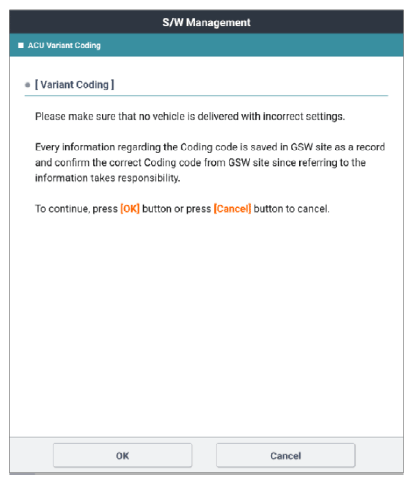

G15721538Courtesy of KIA MOTORS AMERICA, INC.
