ACU Variant Coding

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. ACU variant coding (Off-line type on KDS-this can be used when not connecting to internet) in the "Vehicle S/W Management" with KDS.
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS and verify that any DTC is stored.
 Fig.1 to 7
G15721523Courtesy of KIA MOTORS AMERICA, INC.

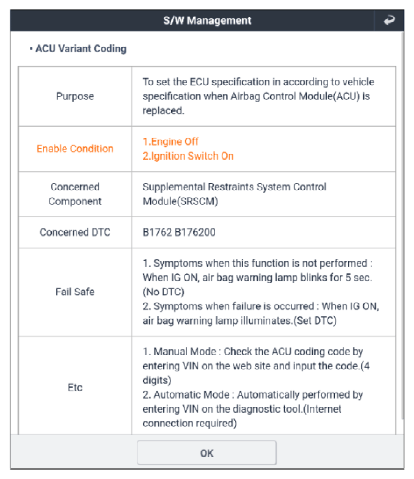

G15721524Courtesy of KIA MOTORS AMERICA, INC.
G15721525Courtesy of KIA MOTORS AMERICA, INC.

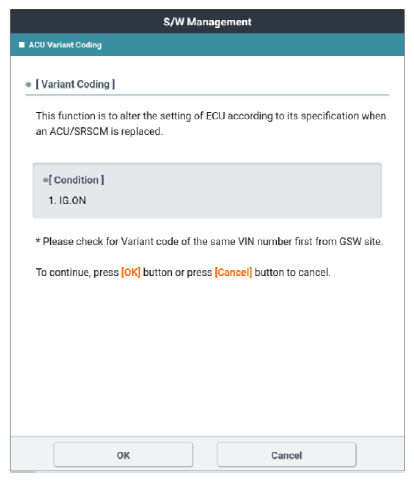

G15721526Courtesy of KIA MOTORS AMERICA, INC.
G15721527Courtesy of KIA MOTORS AMERICA, INC.

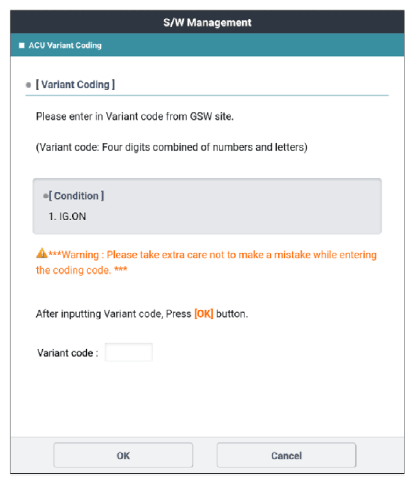

G15721528Courtesy of KIA MOTORS AMERICA, INC.

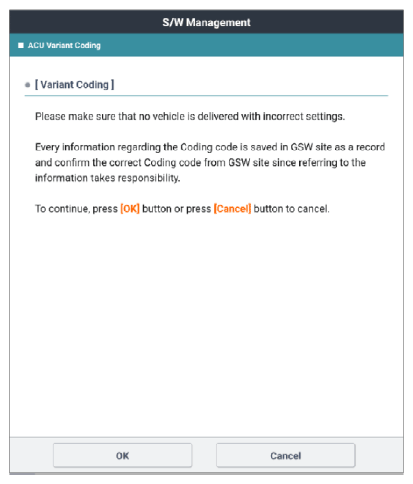

G15721529Courtesy of KIA MOTORS AMERICA, INC.
