Monitor DTC Status

Inspection Condition	Inspection Procedure	Reference

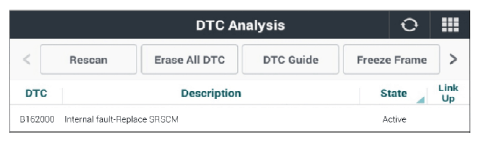

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor "Diagnostic Trouble Codes (DTC)" with KDS.	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

If no problems were found with the circuits or connectors, replace the SRSCM and go to "VERIFICATION OF REPAIR " procedure.

History/Pending Fault
