Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference

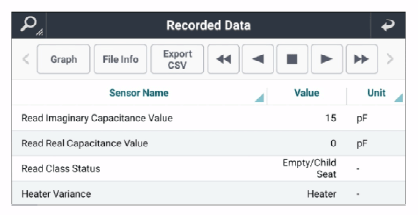

Ignition "ON". No occupant on the passenger seat.	Connect KDS to "Data Link Connector (DLC)". Monitor parameters in "Current Data" with KDS.	Fig.1 to 2

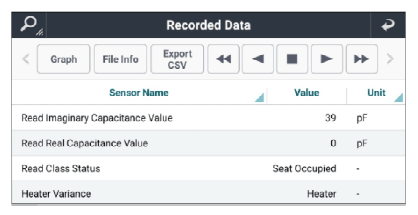

Ignition "ON". Occupant on the passenger seat.		Fig.1 to 2

G15721425

Courtesy of KIA MOTORS AMERICA, INC.

G15721426

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of 12V battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and Go to "VERIFICATION OF REPAIR " procedure.

No Good

Go to "BODY SENSOR RESET " procedure.
