Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System Diagnosis (3 Of 4) >> DTC B1475-00: Inflatable Curtain Airbag Driver Resistance Circuit Short To Ground >> Wiring Inspection >> Circuit Inspection >> Notes

Circuit Inspection: Notes

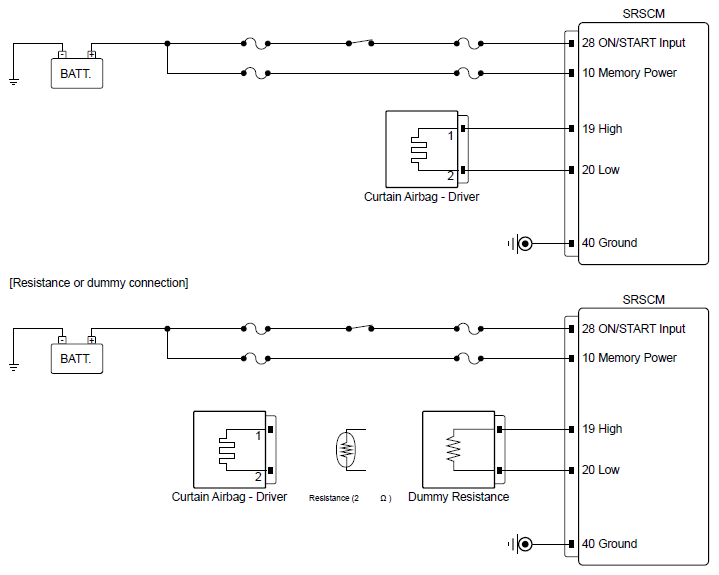

G15721313Courtesy of KIA MOTORS AMERICA, INC.
