Component Inspection
| Inspection Item | Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | |||
| Oscilloscope (RPSIS) |
|

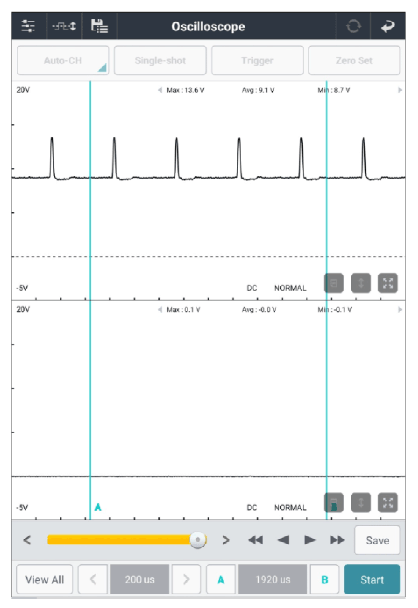

RPSIS connector | 1 (high) | Chassis ground | - | Fig.1 |
| RPSIS connector | 2 (low) | Chassis ground | - | |||
Good
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace SRSCM main harness and then Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace RPSIS and then Go to "VERIFICATION OF REPAIR " procedure.
