Circuit Inspection

G15714379

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Item	Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Item	Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Open in circuit inspection (RDSIS ↔ SRSCM)	Ignition "OFF". Disconnect the 12V battery (-) cable and wait at least for five minutes. Disconnect RDSIS connector, SRSCM connector.	RDSIS connector	1 (high)	SRSCM connector	42 (high)	Approx. below 1Ω
Open in circuit inspection (RDSIS ↔ SRSCM)		RDSIS connector	2 (low)	SRSCM connector	41 (low)	Approx. below 1Ω
Short in circuit inspection (RDSIS ↔ Chassis ground)	Ignition "OFF". Disconnect the 12V battery (-) cable and wait at least for five minutes. Disconnect RDSIS connector.	RDSIS connector	1 (high)	Chassis ground	-	∞ (infinity)Ω
Short in circuit inspection (RDSIS ↔ Chassis ground)		RDSIS connector	2 (low)	Chassis ground	-	∞ (infinity)Ω
Oscilloscope (RDSIS)	Ignition "OFF". Disconnect the 12V battery (-) cable and wait at least for five minutes. Disconnect RDSIS connector. Connect the 12V battery (-) terminal cable to the 12V battery. Ignition "ON".	RDSIS connector	1 (high)	Chassis ground	-	Fig.1
Oscilloscope (RDSIS)		RDSIS connector	2 (low)	Chassis ground	-	Fig.1

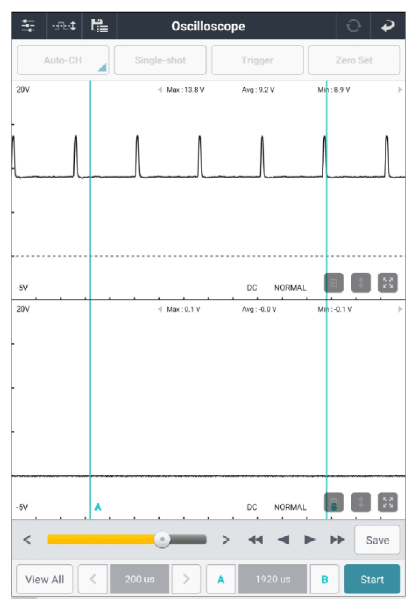

G15714380

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace SRSCM main harness and then Go to "VERIFICATION OF REPAIR " procedure.
