Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference

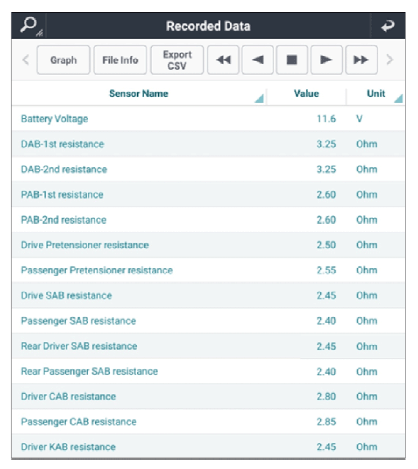

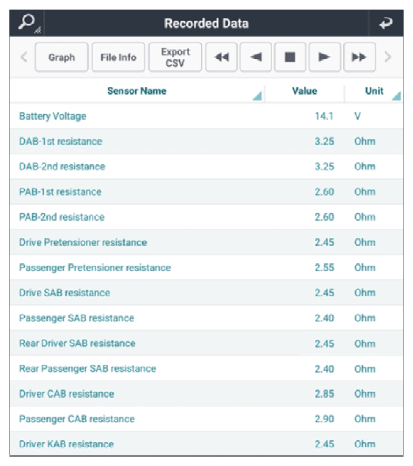

Ignition "ON". Engine "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor parameters in "Current Data" with KDS.	Fig.1 to 2

G15714256

Courtesy of KIA MOTORS AMERICA, INC.

G15714257

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: If you strike or spin the SRSCM at the ignition "ON" state, the BPT, CAB or SAB could be unfolded and bring on danger. Handle it with care.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of 12V battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and Go to "VERIFICATION OF REPAIR " procedure.

No Good

Check for short between ignition circuits of DAB, PAB, BPT, CAB, SAB, APT If the condition of harness and component is OK, this fault is caused by SRSCM internal error so replace a known-good SRSCM and then Go to "VERIFICATION OF REPAIR " procedure.
