[Second Row]

  1. Disconnect the battery negative (-) terminal.
    NOTE: After disconnecting the battery negative (-) terminal, wait at least 3 minutes and 30 seconds.
  2. Remove the rear seat back cover.

    (Refer to Body - "REAR SEAT BACK COVER ")

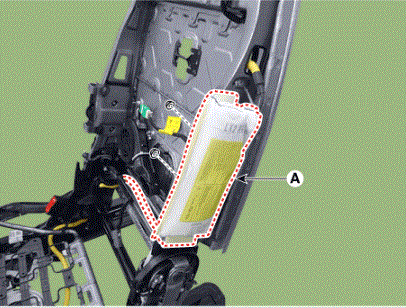

  3. Remove the second row side airbag (A) after removing the nuts.

    Tightening torque:

    6.9 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.1 - 7.2 lb.ft)

G00639616Courtesy of KIA MOTORS AMERICA, INC.
