[First Row]

  1. Disconnect the battery negative (-) terminal.
    NOTE: After disconnecting the battery negative (-) terminal, wait at least 3 minutes and 30 seconds.
  2. Remove the front seat back cover.

    (Refer to Body - "FRONT SEAT BACK COVER ")

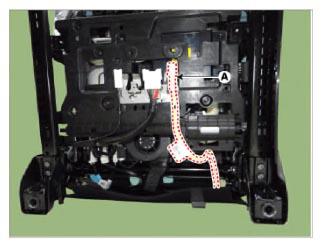

  3. Separate the first row side airbag wiring (A).
    G15709285Courtesy of KIA MOTORS AMERICA, INC.

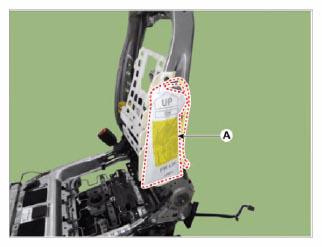

  4. Remove the first row side airbag (A) after removing the nuts.

    Tightening torque:

    6.9 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.1 - 7.2 lb.ft)

G15709286Courtesy of KIA MOTORS AMERICA, INC.
