Removal & Installation: Removal
- Disconnect the battery negative (-) terminal.NOTE: After disconnecting the battery negative (-) terminal, wait at least 3 minutes and 30 seconds.
- Remove the main crash pad assembly.
(Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

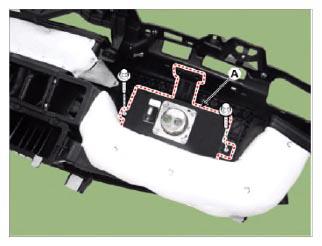

- Remove the passenger airbag module (A) after removing the bolts.
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)
