Removal & Installation: Removal

Disconnect the battery negative (-) terminal.
NOTE: After disconnecting the battery negative (-) terminal, wait at least 3 minutes and 30 seconds.
Remove the roof trim assembly.
(Refer to Body - "ROOF TRIM ASSEMBLY ")

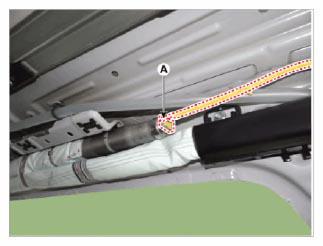

Disconnect the curtain airbag module connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

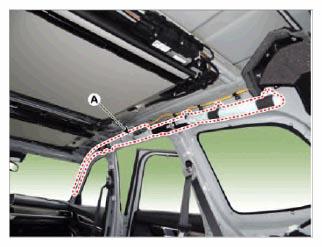

Remove the curtain airbag module (A) after removing the bolts and nuts.
Tightening torque

Bolt: 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Nut: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
