Removal & Installation: Removal

Disconnect the battery negative (-) terminal.
NOTE: After disconnecting the battery negative (-) terminal, wait at least 3 minutes and 30 seconds.
Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
Remove the steering column shroud lower panel.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")

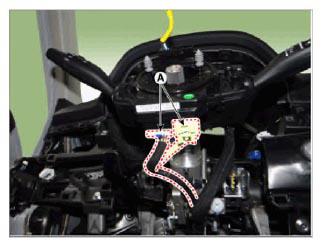

Disconnect the clock spring connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

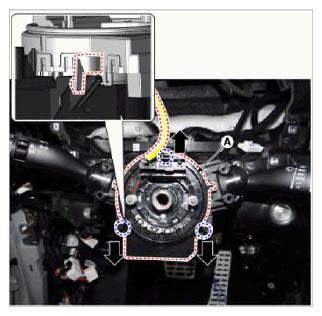

Remove the clock spring (A) by releasing the fixing hook.

Courtesy of KIA MOTORS AMERICA, INC.
