Deployment Outside Of The Vehicle

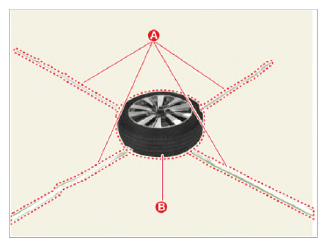

  1. After spreading the rope (A) on the floor in a cross shape, put the tire (B) equipped with the wheel on the floor.
    G15709300Courtesy of KIA MOTORS AMERICA, INC.

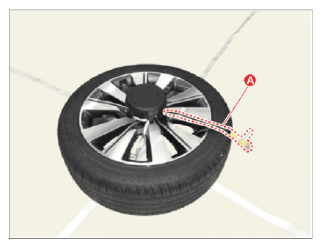

  2. Connect the deployment adapter (A) (0K57A - 3U100A) to the airbag module/pretensioner.
    G15709301Courtesy of KIA MOTORS AMERICA, INC.

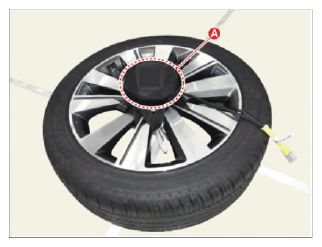

  3. Fix the airbag module/pretensioner (A) to the wheel.

    [Airbag Module]

    G15709302Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: If the airbag deployment surface faces downward instead of upward, the airbag may spring up and cause serious injury to the worker.

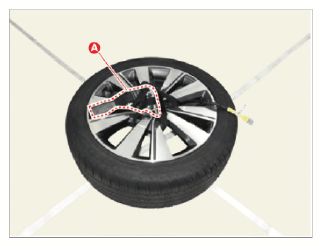

    [Pretensioner]

    G15709303Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Install the end of the piston tube of the anchor pretensioner, facing the floor.

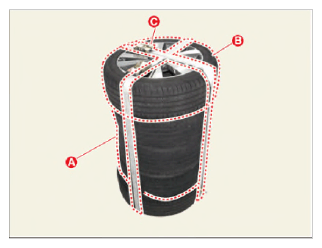

  4. After putting the three waste tires (A), put the tire (B) with the wheel on it.
  5. Fix the tire by using the ratchet strap (C).
    G15709304Courtesy of KIA MOTORS AMERICA, INC.

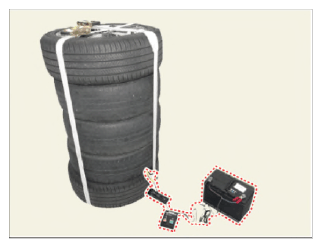

  6. After connecting the battery, connect the airbag deployment tool (0957A - 34100A) to the deployment adapter (0K57A - 3U100A).
    G15709305Courtesy of KIA MOTORS AMERICA, INC.

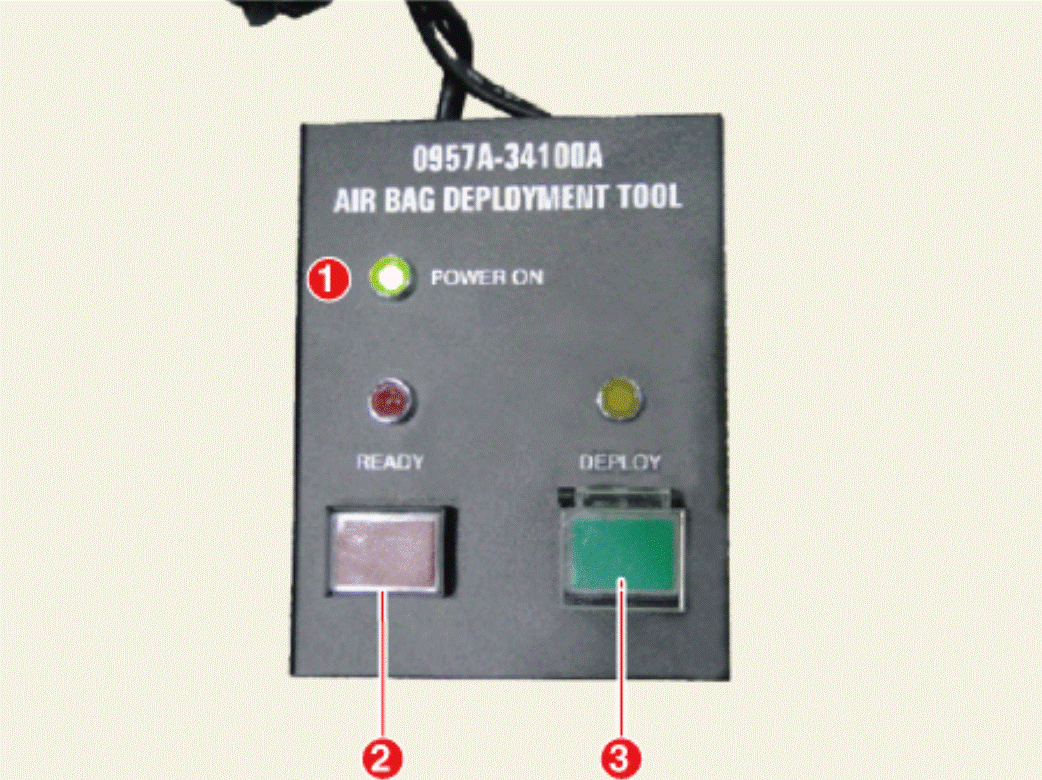

  7. After connecting the battery, when the POWER ON (A) illuminates on the tool for deploying the airbag, press READY (B) button and then press DEPLOY (C) to deploy the airbag.
    G15709306Courtesy of KIA MOTORS AMERICA, INC.

    Information

    When the airbag is deployed, loud noise is generated, visually confirmed, and after rapid inflation, it contracts slowly.

  8. Place the deployed airbag in a sturdy plastic bag and sealed securely, then dispose it.
G15709307Courtesy of KIA MOTORS AMERICA, INC.
