Removal & Installation: Removal: Rear

  1. Disconnect the battery negative (-) terminal.

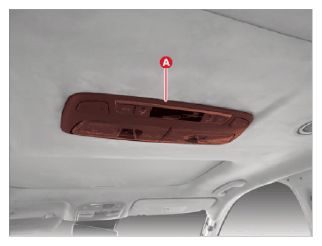

  2. Remove the rear heater and air conditioner control unit (A).
    G15710637Courtesy of KIA MOTORS AMERICA, INC.

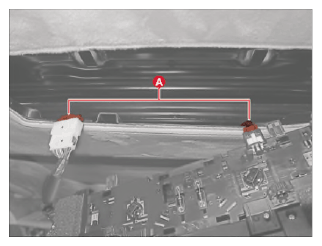

  3. Disconnect the rear heater and air conditioner control unit connectors (A).
G15710638Courtesy of KIA MOTORS AMERICA, INC.
