Removal & Installation: Removal: Front

  1. Remove the passenger's side crash pad center garnish.

    (Refer to Body - "CRASH PAD GARNISH ")

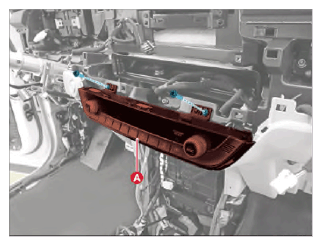

  2. Remove the heater and air conditioner control unit (A) after removing the screws.
    G15710634Courtesy of KIA MOTORS AMERICA, INC.

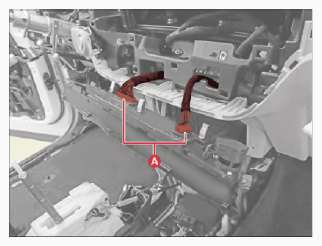

  3. Disconnect the heater and air conditioner control unit connectors (A).
    G15710635Courtesy of KIA MOTORS AMERICA, INC.
    G15710636Courtesy of KIA MOTORS AMERICA, INC.

    Information

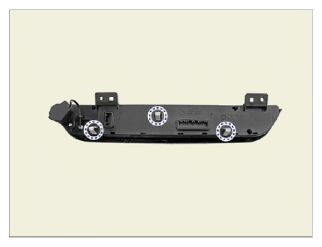

    Clip position:

G15335361Courtesy of KIA MOTORS AMERICA, INC.
