Self Diagnosis

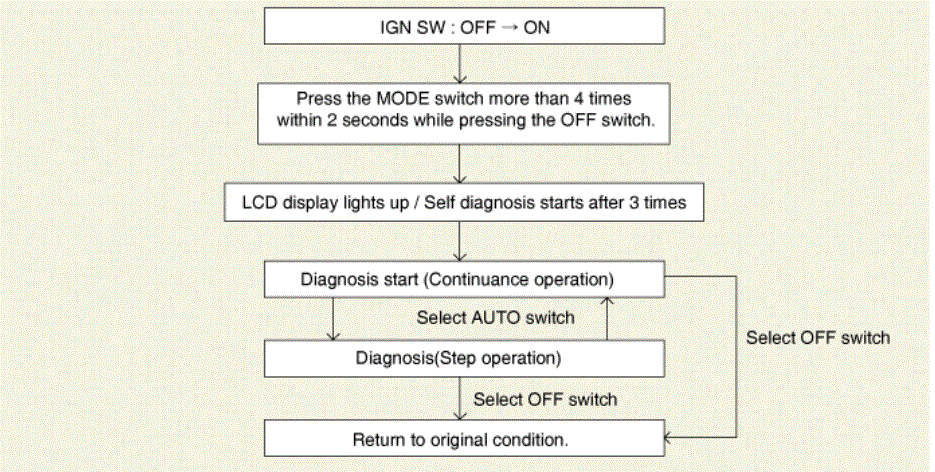

G15710627Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
  • During the self-diagnosis, fault code is displayed on the set temperature display and turn off all the others.
  • During the self-diagnosis, the air conditioning control remains OFF.
  • During the self-diagnosis, the following fault details (self-diagnosis code) are displayed on the set temperature display unit by blinking at 0.5 second intervals.
  • When IG OFF & ON during self-diagnosis, the system returns to the OFF state.
  1. How to display fault codes

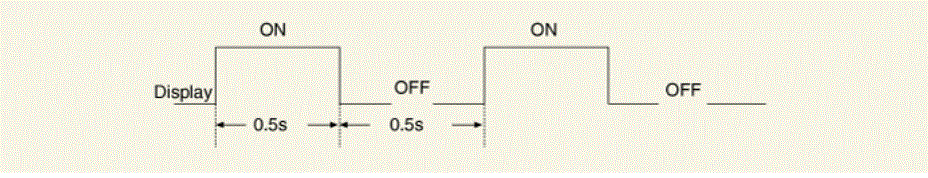

    1. Continuous operation: Normal or in case of one fault
      G15710628Courtesy of KIA MOTORS AMERICA, INC.

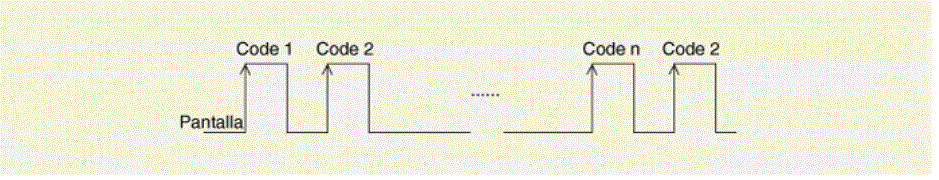

    2. Continuous operation: Multiple faults
      G15710629Courtesy of KIA MOTORS AMERICA, INC.
    3. During STEP operation
      1. Normal or one fault is same as continuous operation.

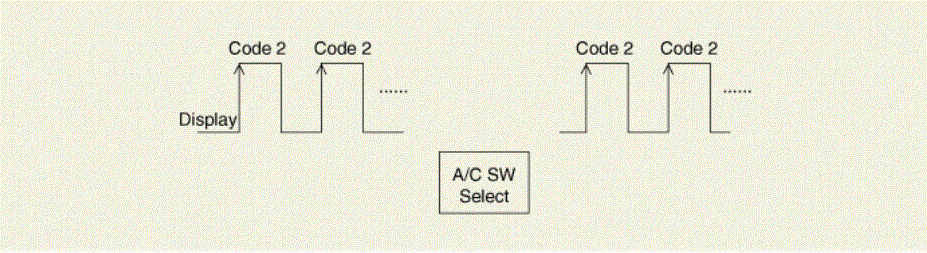

      2. In case of multiple faults
    G15710630Courtesy of KIA MOTORS AMERICA, INC.
  2. For troubleshooting procedures, refer to the DTC code.
