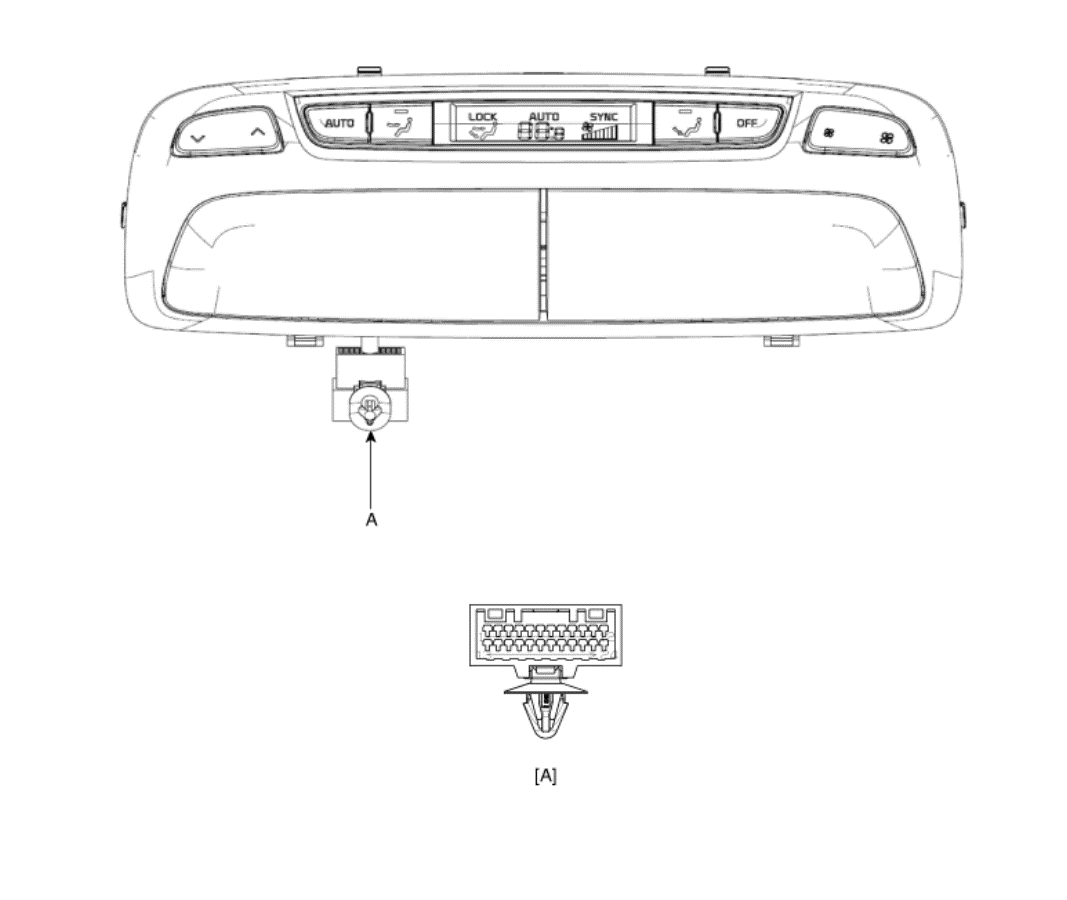

Connector And Terminal Function: Rear
| Pin | Function |
|---|---|
| 1 | Battery (+) |
| 2 | Low DC-DC converter (Audio) |
| 3 | ILL (+) |
| 4 | Sensor ground (Rear mode actuator) (rear temperature actuator) |
| 5 | Rear mode actuator (Feedback) |
| 6 | Rear temperature actuator (Feedback) |
| 7 | Rear mode actuator (Vent) |
| 8 | Rear mode actuator (Floor) |
| 9 | Rear temperature actuator (Cool) |
| 10 | Rear temperature actuator (Warm) |
| 11 | - |
| 12 | ILL (-) |
| 13 | IG 2 |
| 14 | Blower motor (+) |
| 15 | - |
| 16 | Instrument cluster (Detent out (+)) |
| 17 | LIN (Front A/C control module) |
| 18 | - |
| 19 | Rear FET (Drain) |
| 20 | Rear FET (GATE) |
| 21 | - |
| 22 | - |
| 23 | Sensor ground (Rear mode actuator) (rear temperature actuator) |
| 24 | Ground |
