Front - Manual
| Pin | Function | ||
|---|---|---|---|

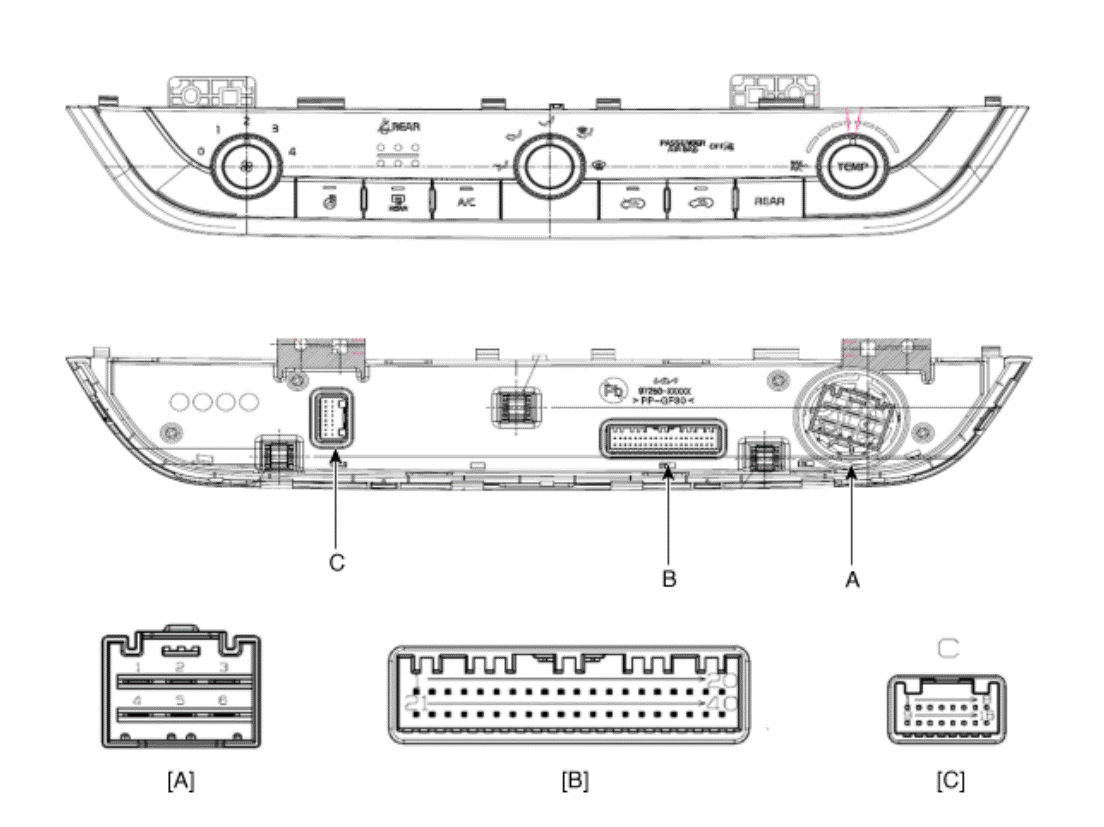

| Connector A | Connector B | Connector C | |
| 1 | Blower resistor (Low) | Battery (+) | SBR & Rear symbol signal |
| 2 | Front A/C control module (Blower common) | Low DC-DC converter (Audio) | 2-Row seat belt IND (Left) |
| 3 | Ground | ILL (+) | 2-Row seat belt IND (Center) |
| 4 | Blower resistor (Middle low) | Sensor ground (Temperature actuator) (Intake actuator) (Front mode actuator) |
2-Row seat belt IND (Right) |
| 5 | Blower resistor (Middle high) Front A/C control module (Blower MAX 'ON' signal) |
Front mode actuator (Feedback) | 3-Row seat belt IND (Left) |
| 6 | Front blower motor/Blower resistor (High) | Temperature actuator (Feedback) | 3-Row seat belt IND (Center) |
| 7 | - | Intake actuator (Feedback) | 3-Row seat belt IND (Right) |
| 8 | - | Evaporator sensor (+) | - |
| 9 | - | Ambient temperature sensor (+) | - |
| 10 | - | Front mode actuator (Vent) | - |
| 11 | - | Front mode actuator (Def) | - |
| 12 | - | Temperature actuator (Cool) | - |
| 13 | - | Temperature actuator (Warm) | - |
| 14 | - | Intake actuator (Fresh) | - |
| 15 | - | Intake actuator (Recirculation) | - |
| 16 | - | Rear defog indicator (Heated outside mirror) |
- |
| 17 | - | Rear defog switch input | - |
| 18 | - | - | - |
| 19 | - | Front A/C control module (Common) | - |
| 20 | - | ILL (-) | - |
| 21 | - | IG 2 | - |
| 22 | - | IG 1 | - |
| 23 | - | PAB IG 1 | - |
| 24 | - | Steering wheel heated switch | - |
| 25 | - | Steering wheel heated indicator | - |
| 26 | - | - | - |
| 27 | - | Front blower switch (Max signal) | - |
| 28 | - | PTC Heater relay 2 | - |
| 29 | - | PTC Heater relay 1 | - |
| 30 | - | PAB off indicator | - |
| 31 | - | Instrument cluster (Detent out (+)) | - |
| 32 | - | LIN BUS (Rear A/C control module) | - |
| 33 | - | P-CAN (High) | - |
| 34 | - | P-CAN (Low) | - |
| 35 | - | - | - |
| 36 | - | Electronic A/C compressor (+) | - |
| 37 | - | Electronic A/C compressor (-) | - |
| 38 | - | Sensor ground (Temperature actuator) (Intake actuator) (Front mode actuator) (Ambient temperature sensor) (Evaporator sensor) |
- |
| 39 | - | Ground | - |
| 40 | - | Ground | - |
