Equipped with R-1234yf recovery/recycling/charging equipment

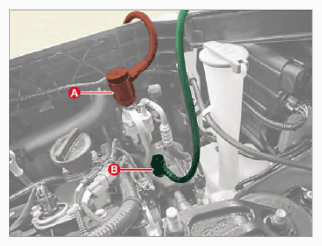

  1. Connect the R-1234yf recovery/recycling/charging equipment to the high-pressure service port (A) and low-pressure service port (B) by reading the refrigerant recovery/recycling/charging equipment instruction manual.
G15710469Courtesy of KIA MOTORS AMERICA, INC.
NOTE: Refrigerant charging equipment should be installed on a flat surface so that it is easy to recover the refrigerant and in particular, the refrigerant can be accurately injected.
