Discharge Hose

If the compressor is operable, run the engine at idle speed, and let the air conditioner operates for a few minutes, then shut the engine off.
Recover the refrigerant with Recovery/Recycling/Charging equipment.
(Refer to Air conditioning System - "REFRIGERANT RECOVERY/RECYCLING/CHARGING/VACUUM/LEAK TEST ")
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

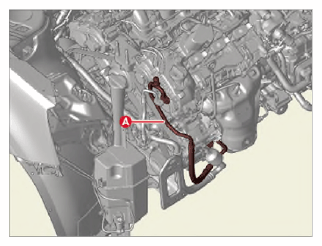

Separate the discharge hose (A) after removing the nut.
Tightening torque:

21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

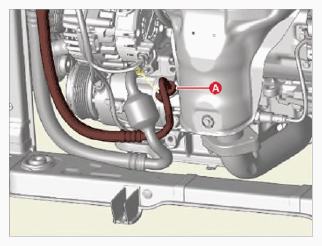

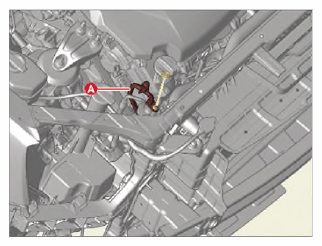

Remove the discharge hose (A) after removing the nut.
Tightening torque:

21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
