Removal & Installation: Removal

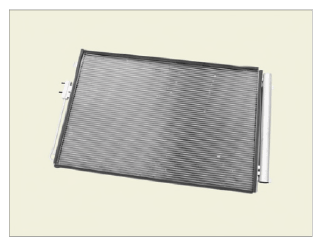

  1. Remove the condenser.

    (Refer to Air conditioning System - "CONDENSER ")

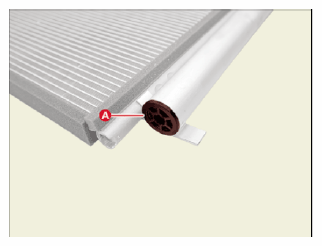

  2. Remove the cap (A) on the lower part of the condenser.
    G15710503Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the receiver drier filter (A) and O-ring (B).
    G15710504Courtesy of KIA MOTORS AMERICA, INC.

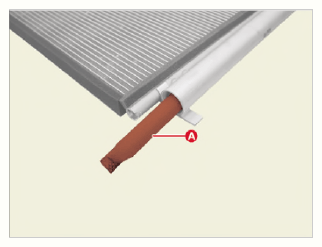

  4. Remove the desiccant (A) in the receiver drier.
G15710505Courtesy of KIA MOTORS AMERICA, INC.
G15710506Courtesy of KIA MOTORS AMERICA, INC.
