Removal & Installation: Removal

  1. Remove the heater and air conditioner control unit.

    (Refer to Controller - "HEATER & A/C CONTROL UNIT ")

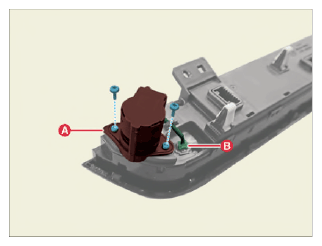

  2. Disconnect the in-car sensor connector (B) and remove the in-car sensor (A) after removing the screws.
G15710514Courtesy of KIA MOTORS AMERICA, INC.
