Removal & Installation: Removal

Recover the refrigerant with Recovery/Recycling/Charging equipment.
(Refer to Air conditioning System - "REFRIGERANT RECOVERY/RECYCLING/CHARGING/VACUUM/LEAK TEST ")
Remove the front bumper beam assembly.
(Refer to Body - "FRONT BUMPER BEAM ASSEMBLY ")

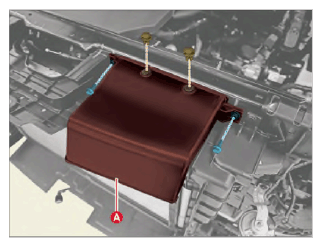

Remove the air intake shield (A) after removing the bolts and fasteners.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiring clips (A).

Courtesy of KIA MOTORS AMERICA, INC.

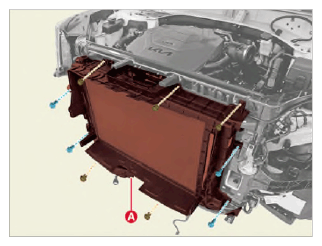

Remove the air guard (A) after removing the bolts and fasteners.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

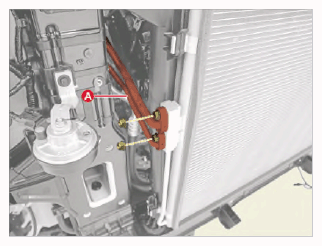

Remove the condenser pipe (A) after removing the nuts.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the condenser (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information

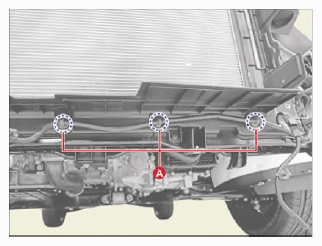

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.
