Removal & Installation: Removal

Disconnect the battery negative (-) terminal.
Recover the refrigerant with Recovery/Recycling/Charging equipment.
(Refer to Air conditioning System - "REFRIGERANT RECOVERY/RECYCLING/CHARGING/VACUUM/LEAK TEST ")
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")

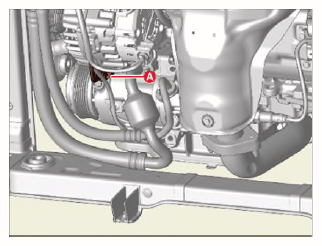

Disconnect the compressor ECV connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

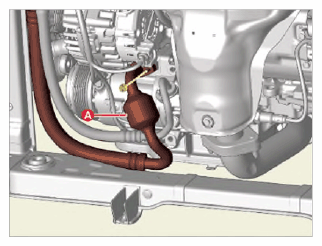

Separate the suction & liquid hose assembly (A) after removing the nut.
Tightening torque:

21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When disconnecting the line, put a plug or cap on the system immediately to protect it from moisture and dust.

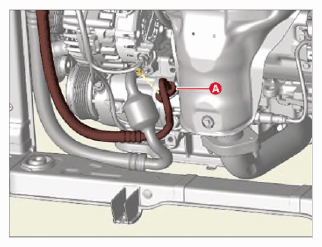

Separate the discharge hose assembly (A) after removing the nut.
Tightening torque:

21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When disconnecting the line, put a plug or cap on the system immediately to protect it from moisture and dust.

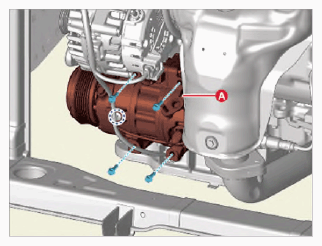

Remove the compressor (A) after removing the bolts.
Tightening torque:

21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.
