Visual inspection

  1. Check for damage to the disc portion of the disc and hub assembly. If there is any damage, replace the clutch set.

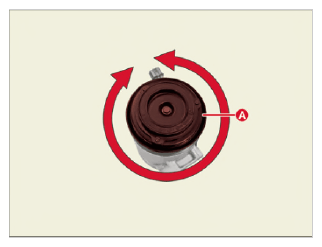

  2. Check the pulley (A) bearing play/drag by rotating the pulley by hand. Replace the pulley with a new one if it is noisy or has excessive play/drag.
G15710490Courtesy of KIA MOTORS AMERICA, INC.
