Disassembly & Reassembly: Disassembly

  1. Remove the front wheel guard [Passenger's side].

    (Refer to Body - "FRONT WHEEL GUARD ")

  2. Remove the drive belt.

    (Refer to Engine Mechanical System - "DRIVE BELT ")

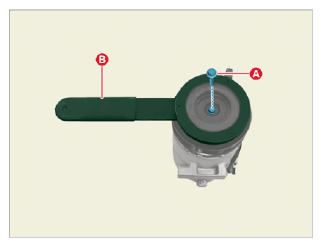

  3. Fix the disk and hub assembly using the air conditioner compressor pulley fixing tool (09977-3R000) (A).

    Tightening torque:

    9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

    G15710492Courtesy of KIA MOTORS AMERICA, INC.

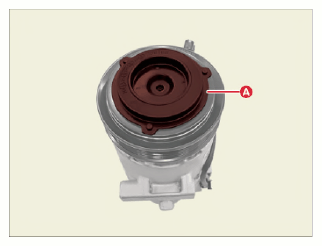

  4. Remove the disc and hub assembly (A).
    G15710493Courtesy of KIA MOTORS AMERICA, INC.

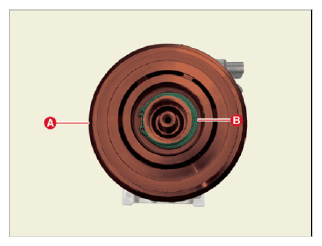

  5. Remove the compressor pulley (A) after removing the snap ring (B).
    G15710494Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Be careful not to damage the pulley and compressor when disassembling/assembling.
    • Removed snap rings must be replaced with new ones.

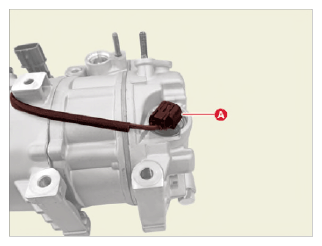

  6. Disconnect the ECV connector (A).
    G15710495Courtesy of KIA MOTORS AMERICA, INC.

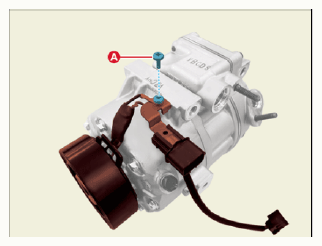

  7. Remove the stator ground screw (A).
    G15710496Courtesy of KIA MOTORS AMERICA, INC.

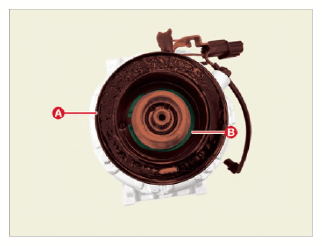

  8. Remove the stator assembly (A) after removing the snap ring (B).
G15710497Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
  • Be careful not to damage the pulley and compressor when disassembling/assembling.
  • Removed snap rings must be replaced with new ones.
