Removal & Installation: Removal

  1. Disconnect the battery negative (-) terminal.

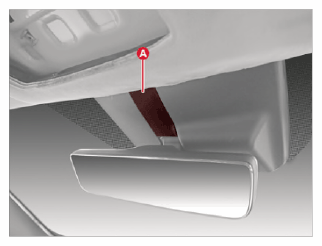

  2. Remove the multi sensor blanking cover (A).
    G15710518Courtesy of KIA MOTORS AMERICA, INC.

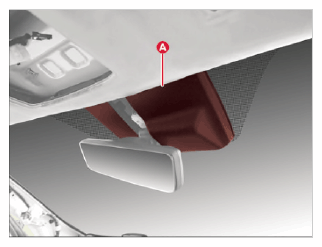

  3. Remove the multi sensor cover (A) in the direction of the arrow.
    G15710519Courtesy of KIA MOTORS AMERICA, INC.
    G15710520Courtesy of KIA MOTORS AMERICA, INC.

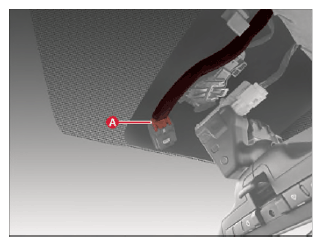

  4. Disconnect the auto defogging sensor connector (A).
    G15710521Courtesy of KIA MOTORS AMERICA, INC.

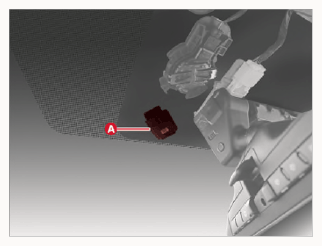

  5. Remove the auto defogging sensor (A).
G15710522Courtesy of KIA MOTORS AMERICA, INC.
