Removal & Installation: Removal

  1. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

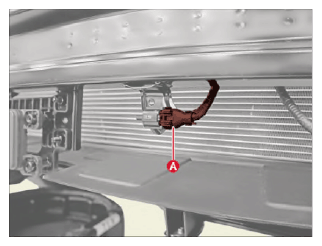

  2. Disconnect the ambient temperature sensor connector (A).
    G15710515Courtesy of KIA MOTORS AMERICA, INC.

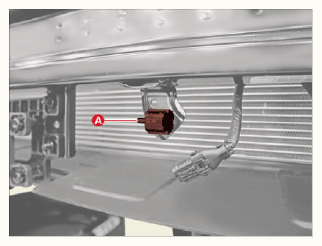

  3. Remove the ambient temperature sensor (A).
G15710516Courtesy of KIA MOTORS AMERICA, INC.
