Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference

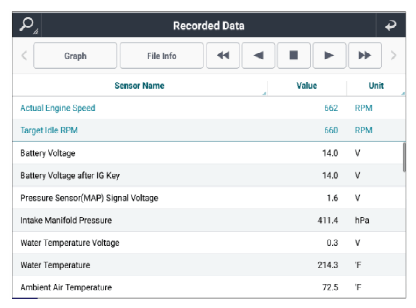

Engine "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor parameters in engine system "Current Data" with KDS.	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Check for APT sensor related DTC and perform applicable troubleshooting and then re-do this troubleshooting guide steps.
If APT sensor related DTCs are corrected and the problem still occurs, Go to "WIRING INSPECTION " procedure.
