Bank2 [Cylinder #2, #4, #6]

  1. Remove the ignition coil.

    (Refer to Ignition System - "IGNITION COIL ")

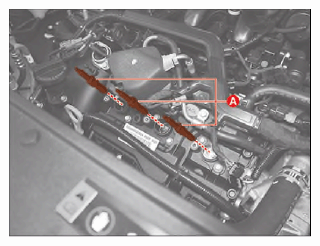

  2. Remove the spark plugs (A).

    Tightening torque:

    15.7 - 23.5 N.m (1.6 - 2.4 kgf.m, 11.6 - 17.4 lb.ft)

G15693187Courtesy of KIA MOTORS AMERICA, INC.
NOTE: Be careful not to get foreign matter into the spark plug hole.
