Bank1 [Cylinder #1, #3, #5]
- Remove the ignition coil.
(Refer to Ignition System - "IGNITION COIL ")

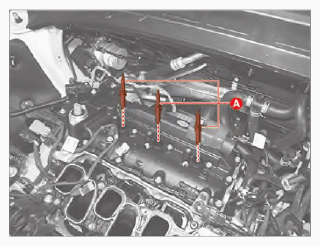

- Remove the spark plugs (A).
Tightening torque:
15.7 - 23.5 N.m (1.6 - 2.4 kgf.m, 11.6 - 17.4 lb.ft)
NOTE:
Be careful not to get foreign matter into the spark plug hole.
