Connector Connection Condition Test (Bank 2)

  1. Remove the engine cover.

    (Refer to Engine Mechanical System - "ENGINE COVER ")

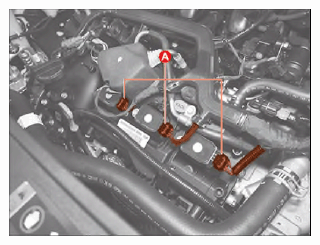

  2. Connect the ignition coil connector (A) again after disconnecting the ignition coil connector (A).
    G15693160Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the engine cover.

    (Refer to Engine Mechanical System - "ENGINE COVER ")

  4. Perform the driving test after deleting the DTC code.

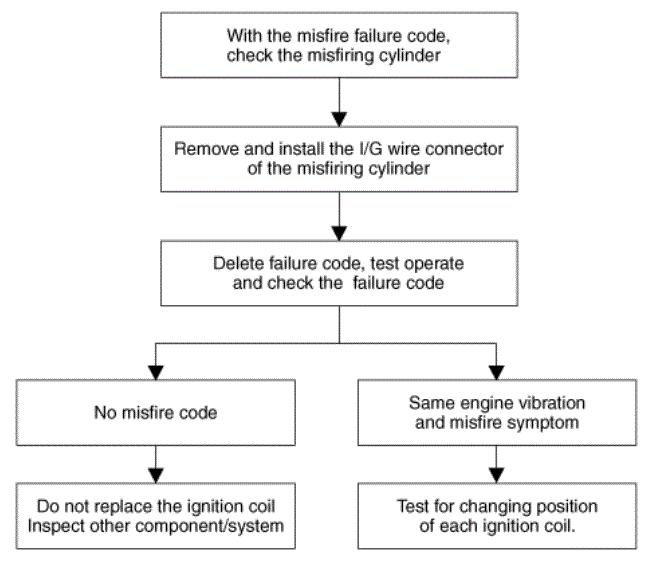

G15693161Courtesy of KIA MOTORS AMERICA, INC.
