Connector Connection Condition Test (Bank 1)

  1. Remove the surge tank.

    (Refer to Engine Mechanical System - "SURGE TANK ")

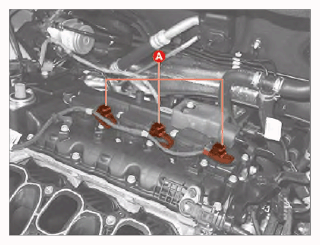

  2. Connect the ignition coil connector (A) again after disconnecting the ignition coil connector (A).
    G15693158Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the surge tank.

    (Refer to Engine Mechanical System - "SURGE TANK ")

  4. Perform the driving test after deleting the DTC code.

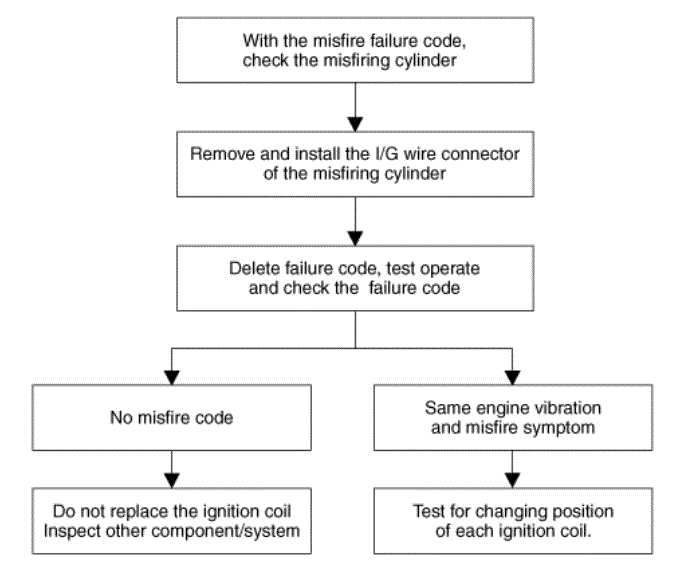

G15693159Courtesy of KIA MOTORS AMERICA, INC.
