Bank2 [Cylinder #2, #4, #6]
- Disconnect the battery negative (-) terminal.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

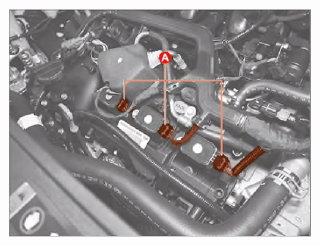

- Disconnect the ignition coil connectors (A).

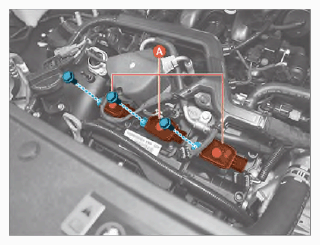

- Remove the ignition coils (A) after removing the bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
