Circuit Inspection

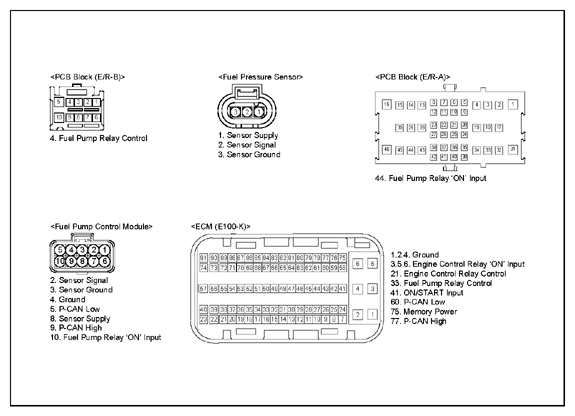

G15726974

Courtesy of KIA MOTORS AMERICA, INC.

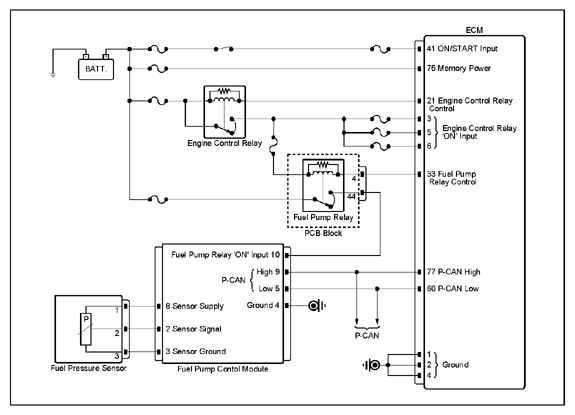

G15726975

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON".	Fuel pump control module connector	10 (power)	Chassis ground	-	B+
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	Fuel pump control module connector	4 (ground)	Chassis ground	-	Approx. below 1Ω
	Fuel pressure sensor connector	1 (power)	Fuel pump control module connector	8 (power)	Approx. below 1Ω
	Fuel pressure sensor connector	2 (signal)	Fuel pump control module connector	2 (signal)	Approx. below 1Ω
	Fuel pressure sensor connector	3 (ground)	Fuel pump control module connector	3 (ground)	Approx. below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
