Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference
Engine "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor parameters in "Current Data" with KDS.	Fig.1 to 3

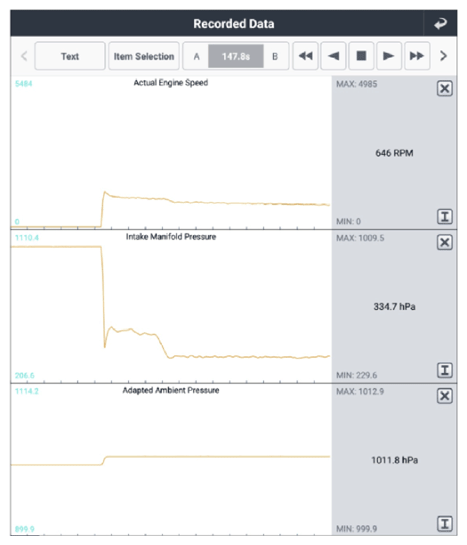

G15726843

Courtesy of KIA MOTORS AMERICA, INC.

G15726844

Courtesy of KIA MOTORS AMERICA, INC.

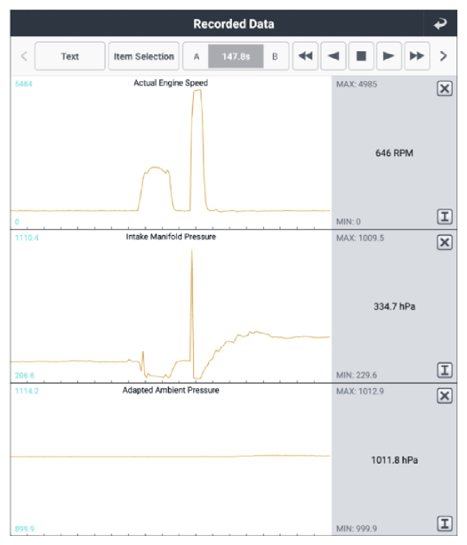

G15726845

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and Go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If the DTC still occur, replace or repair the BPS/ECM and Go to "VERIFICATION OF REPAIR " procedure.
