Circuit Inspection

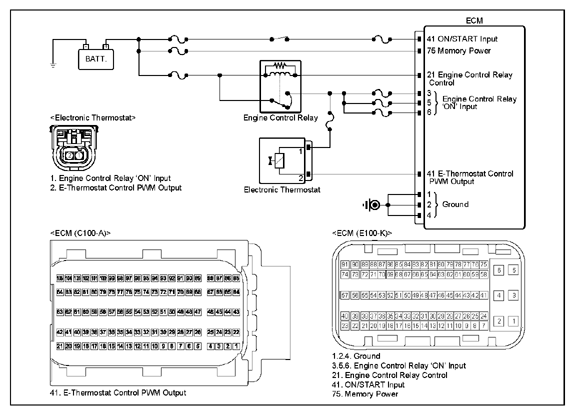

G15726781

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	ECT connector	1 (power)	Chassis ground	-	∞ (infinity) Ω
	ECT connector	2 (control)	ECM connector	41 (control)	Approx. below 1Ω
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	ECT connector	1 (power)	Chassis ground	-	B+
Engine "ON". Perform "Engine coolant filling mode" with "Vehicle S/W Management".	ECT connector	1 (power)	Chassis ground	-	Fig.1
	ECT connector	2 (control)	Chassis ground	-	Fig.1

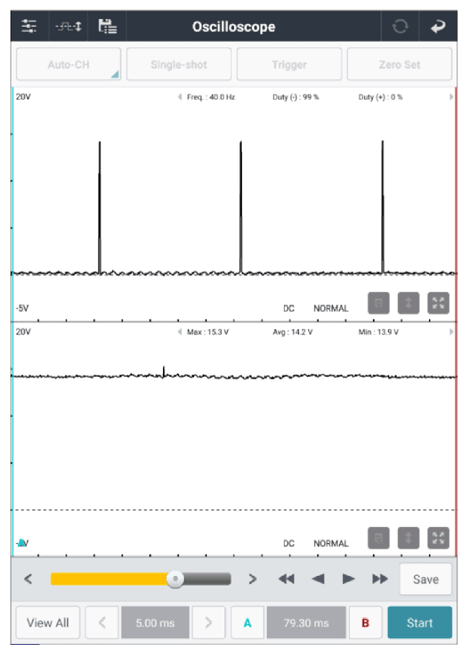

G15726782

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
