Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Engine "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

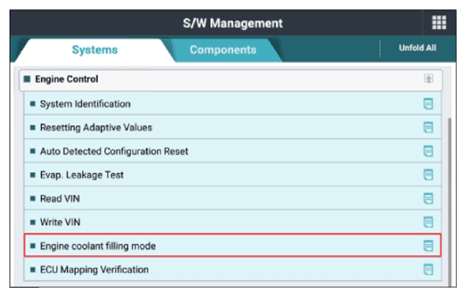

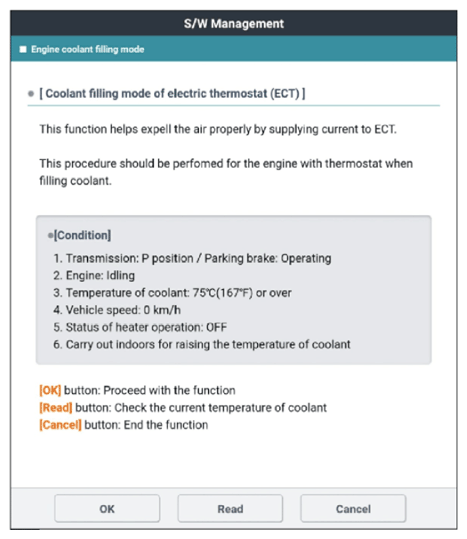

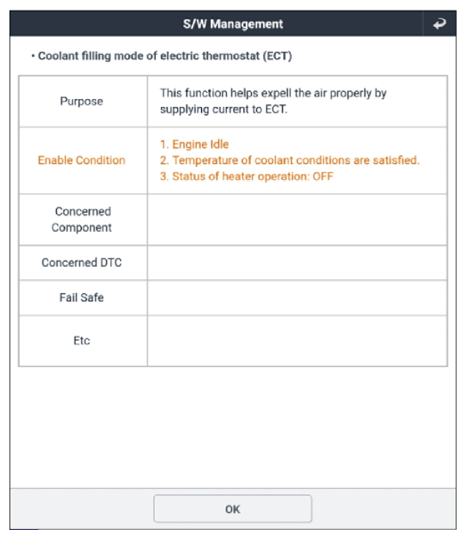

 Fig.1 to 5
G15726784Courtesy of KIA MOTORS AMERICA, INC.
G15726785Courtesy of KIA MOTORS AMERICA, INC.
G15726786Courtesy of KIA MOTORS AMERICA, INC.
G15726787Courtesy of KIA MOTORS AMERICA, INC.
G15726788Courtesy of KIA MOTORS AMERICA, INC.
