Circuit Inspection

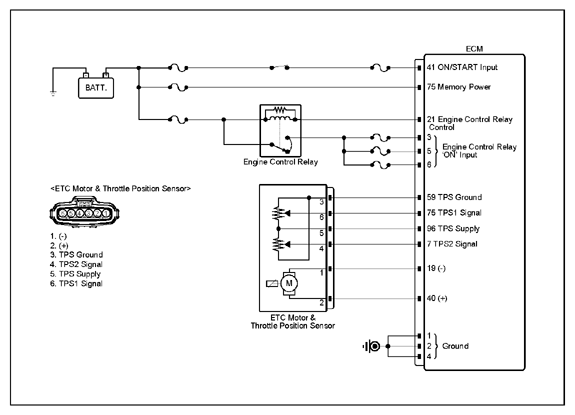

G15726182

Courtesy of KIA MOTORS AMERICA, INC.

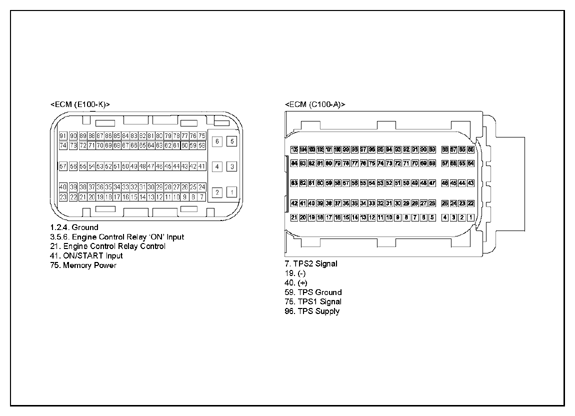

G15726183

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	ETC connector	2 (ETC +)	Chassis ground	-	Approx. 1.87V
	ETC connector	1 (ETC -)	Chassis ground	-	Approx. 0.09V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component and ECM.	ETC connector	2 (ETC +)	Chassis ground	-	∞ (infinity)Ω
	ETC connector	1 (ETC -)	Chassis ground	-	∞ (infinity)Ω
	ETC connector	2 (ETC +)	ECM connector	40 (ETC +)	Approx. below 1Ω
	ETC connector	1 (ETC -)	ECM connector	19 (ETC -)	Approx. below 1Ω
	ETC connector	2 (ETC +)	TPS connector	1 (ETC -)	∞ (infinity)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
