Component Inspection: Notes

Inspection Condition	Inspection Procedure	Reference

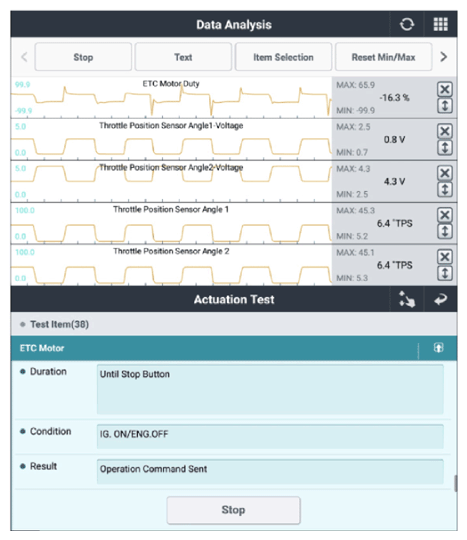

Ignition "ON" Engine "ON" and no DTC.	Connect KDS to "Data Link Connector (DLC)". Perform "Actuation Test" of concerned component with KDS.	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the ETC motor and Go to "VERIFICATION OF REPAIR " procedure.
