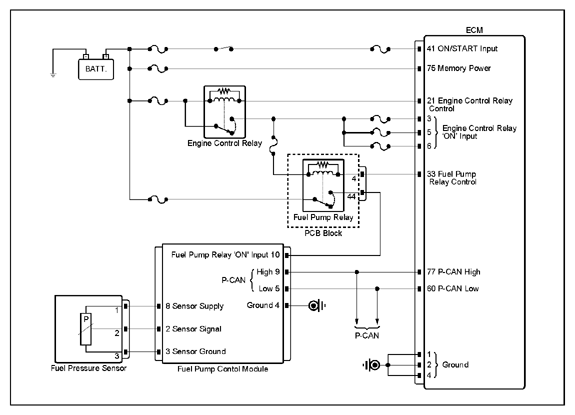

Circuit Inspection

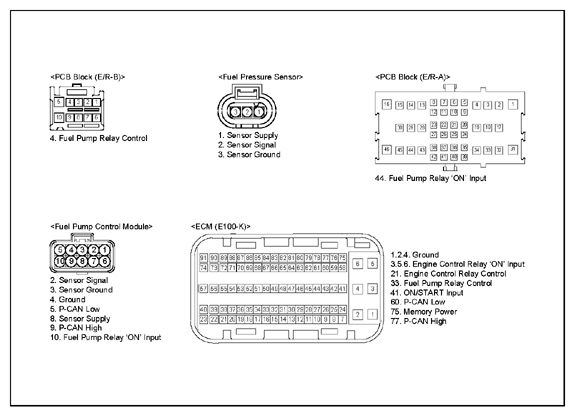

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
PCB block connector | 4 (relay control) | ECM connector | 33 (relay control) | Approx. below 1Ω |
| PCB block connector | 44 (relay ON power) | FPCM connector | 10 (relay ON power) | Approx. below 1Ω | |
| FPCM connector | 4 (ground) | Chassis ground | - | Approx. below 1Ω | |
|
FPCM connector | 10 (relay ON power) | Chassis ground | - | B+ |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
