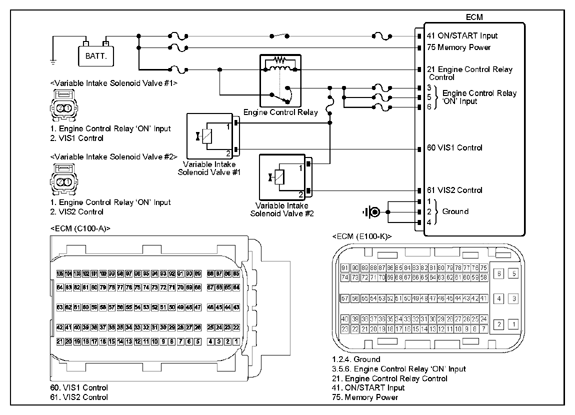

Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
VIS #2 connector | 1 (power) | Chassis ground | - | Approx. 12V |
| VIS #2 connector | 2 (control) | Chassis ground | - | Approx. 2.5V | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
