Circuit Inspection

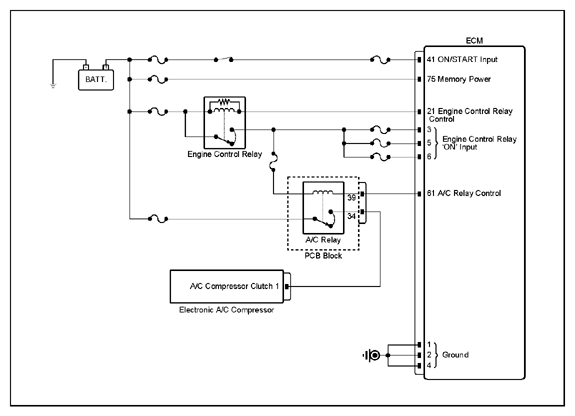

G15726025

Courtesy of KIA MOTORS AMERICA, INC.

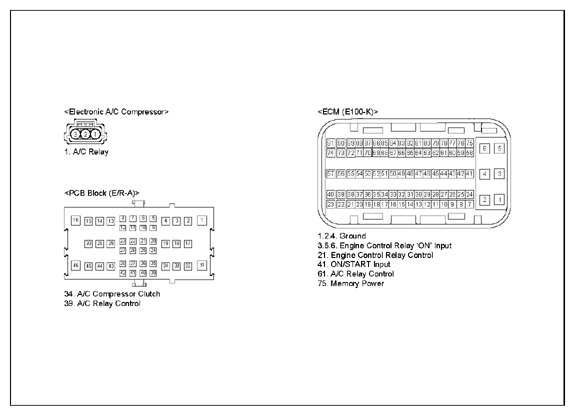

G15726026

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	PCB block connector	39 (relay control)	ECM connector	61 (relay control)	Approx. below 1Ω
	PCB block connector	34 (relay ON power)	A/C compressor connector	1 (relay ON power)	Approx. below 1Ω
Disconnect the electrical connector(s) from the concerned component. Engine "ON". A/C "ON".	A/C compressor connector	1 (relay ON power)	Chassis ground	-	B+

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
