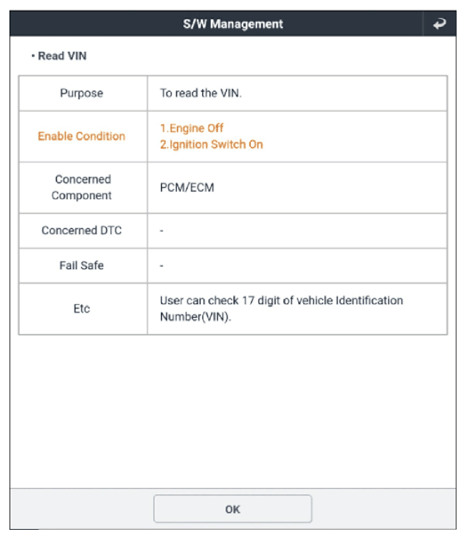

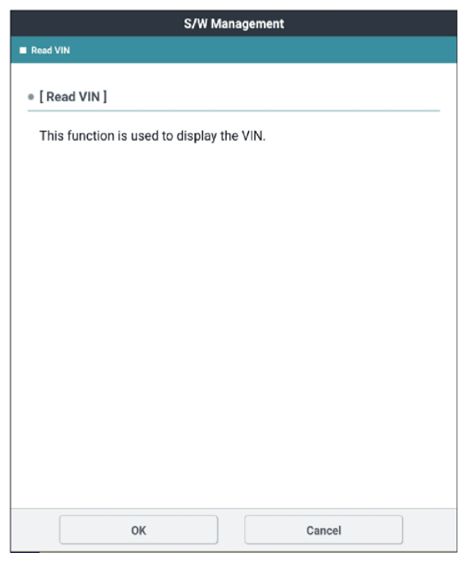

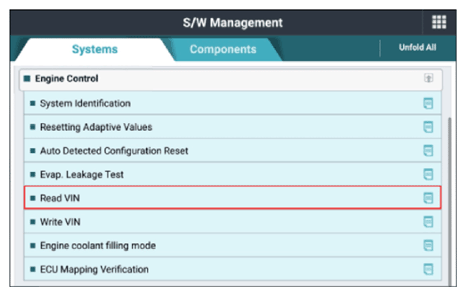

Vehicle S/W Management: Read VIN procedure

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Make sure actual VIN and read VIN is matched each other.
• Go to "VERIFICATION OF REPAIR " procedure.

No Good

• Go to "Writing VIN on ECM" procedure.
