Circuit Inspection

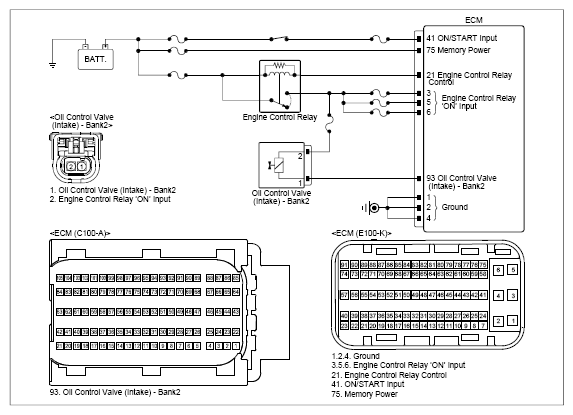

G15725948

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component and ECM.	OCV In - Bank2 connector	1 (control)	Chassis ground	-	∞ (infinity)Ω
	OCV In - Bank2 connector	1 (control)	ECM connector	93 (control)	Approx. below 1Ω
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	OCV In - Bank2 connector	2 (power)	Chassis ground	-	B+
	OCV In - Bank2 connector	1 (control)	Chassis ground	-	Approx. 2.5V

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
