Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Engine "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

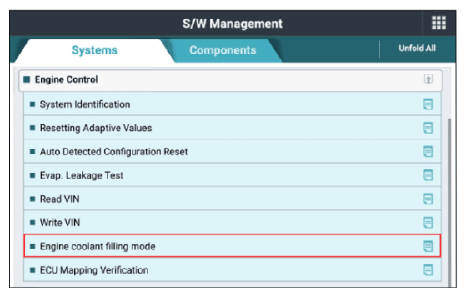

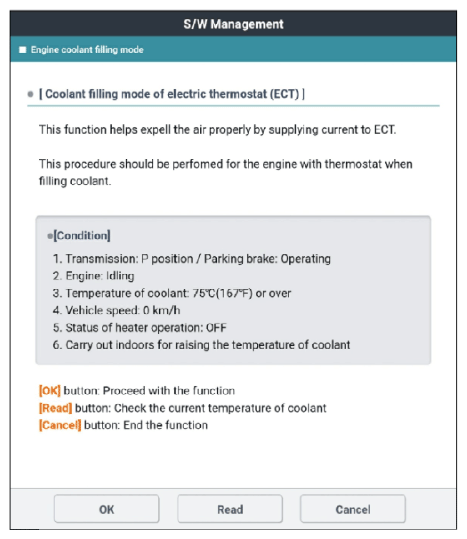

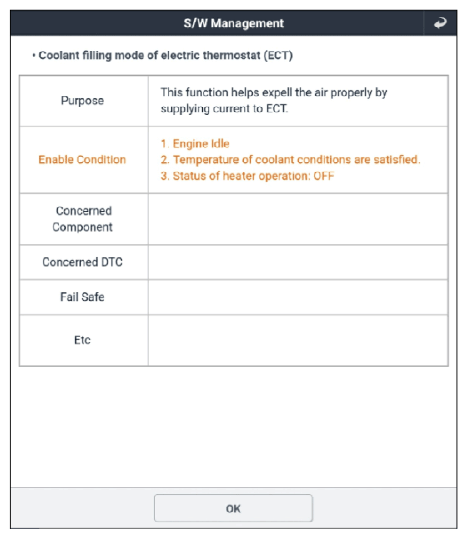

 Fig.1 to 5
G15725924Courtesy of KIA MOTORS AMERICA, INC.
G15725925Courtesy of KIA MOTORS AMERICA, INC.
G15725926Courtesy of KIA MOTORS AMERICA, INC.
G15725927Courtesy of KIA MOTORS AMERICA, INC.
G15725928Courtesy of KIA MOTORS AMERICA, INC.
