Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Control System Diagnosis (10 Of 13) >> DTC P0597-00: Thermostat Heater Control Circuit/Open >> Component Inspection >> Vehicle S/W Management

Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Engine "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

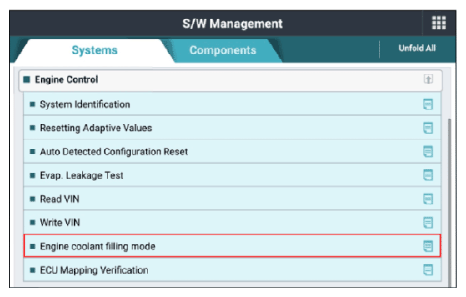

G15725913Courtesy of KIA MOTORS AMERICA, INC.

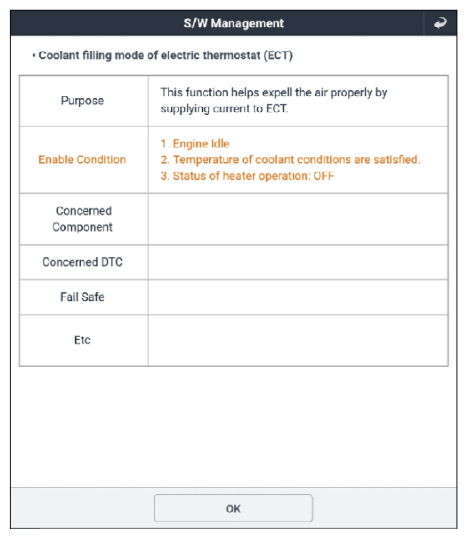

G15725914Courtesy of KIA MOTORS AMERICA, INC.

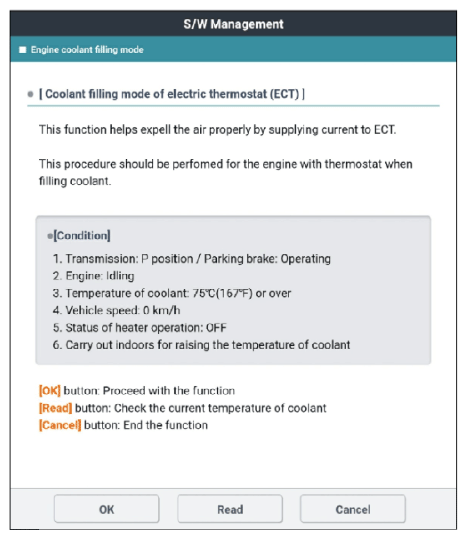

G15725915Courtesy of KIA MOTORS AMERICA, INC.
G15725916Courtesy of KIA MOTORS AMERICA, INC.
G15725917Courtesy of KIA MOTORS AMERICA, INC.
