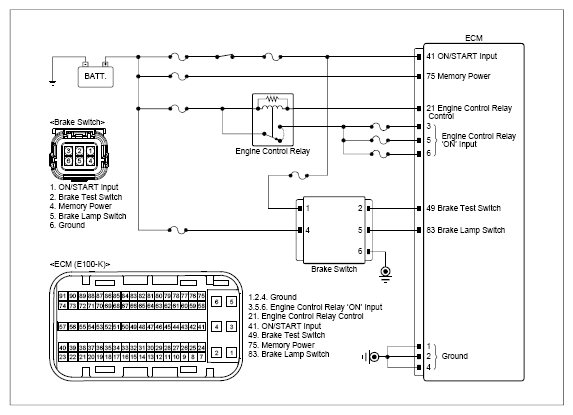

Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Brake switch connector | 2 (brake test switch) | Chassis ground | - | 0V |
| Brake switch connector | 5 (brake lamp switch) | Chassis ground | - | B+ | |
|
Brake switch connector | 2 (brake test switch) | Chassis ground | - | B+ |
| Brake switch connector | 5 (brake lamp switch) | Chassis ground | - | 0V | |
|
Brake switch connector | 6 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the brake switch and Go to "VERIFICATION OF REPAIR " procedure.
